MPM-100 Multi-Pigment-Meter

MPM-100 is a compact hand held meter which uses a combination of proven techniques to measure different plant pigments simultaneously. The MPM-100 uses ratio fluorescence to measure anthocyanin content and flavonol content, and leaf transmission in the far red and near infra-red to measure chlorophyll content.

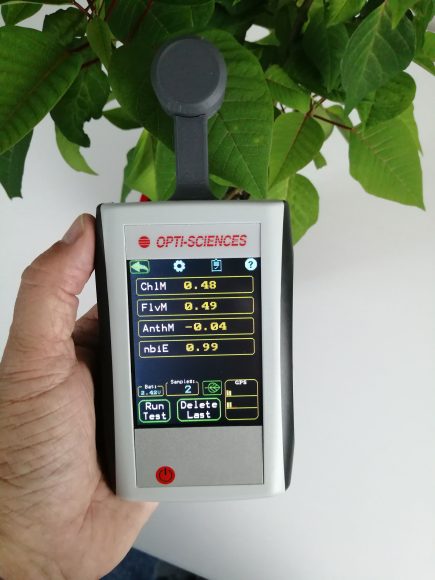

The resulting chlorophyll content and flavonol content readings are used to determine the nitrogen-flavonol index.

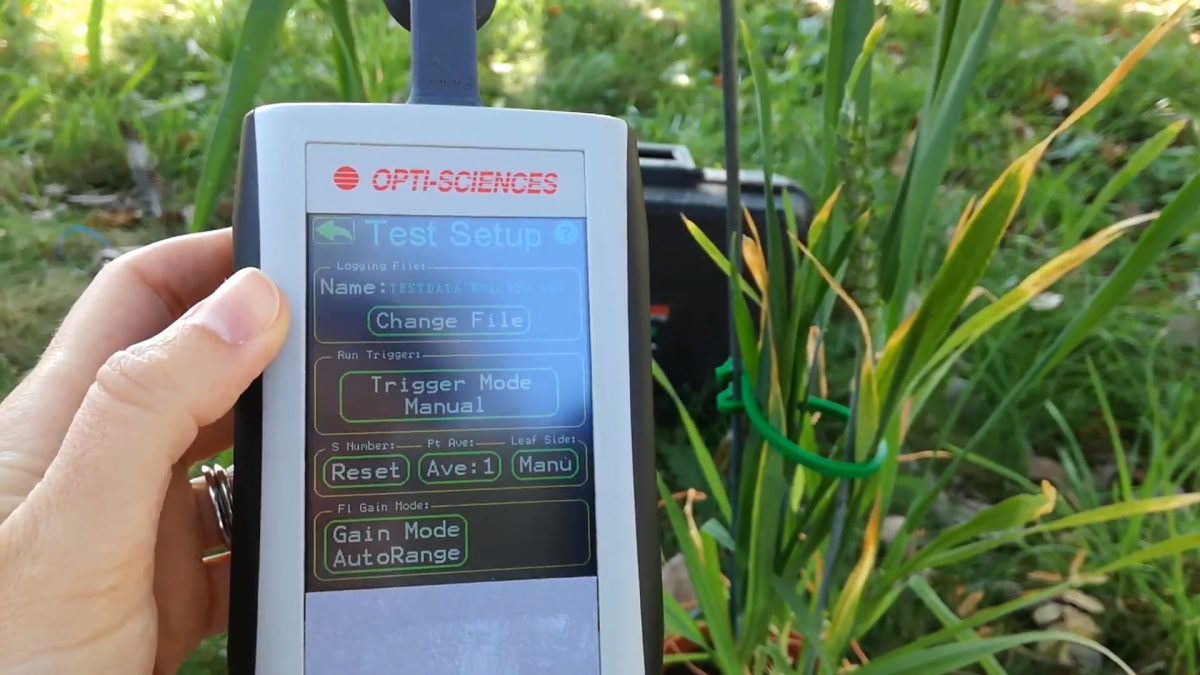

The meter has a high resolution, colour, touch screen display and 4GB of non-volatile flash memory.

A USB port is supplied for data download of comma delineated files.

Data can be saved as discrete single measurements or averages of 2 to 8 samples with either mean or median saved.

Click here for short video of MPM-100

Downloads and Media for this Product

Click here to download a pdf catalogue for this product
Click here to download MPM-100 Manual
Click here to download Comparing MPM-100 S with SPAD Meter
Click here to watch videos for this product (Opens in YouTube)

References

Yves Goulas, Zoran G. Cerovic, Aurélie Cartelat, and Ismaël Moya (2004) “Dualex: a new instrument for field measurements of epidermal ultraviolet absorbance by chlorophyll fluorescence”. Applied Optics Vol. 43, Issue 23, pp. 4488-4496 (2004) https://doi.org/10.1364/AO.43.004488

Z.G. Cerovic, N.Moise, G. Agatic, G. Latouchea, N. Ben Ghozlena, S. Meyera (2008) “New portable optical sensors for the assessment of wine grape phenolic maturity based on berry fluorescence”. Journal of Food Composition and Analysis Volume 21, Issue 8, December 2008, Pages 650-654

Anatoly A Gitelson, Claus Buschmann, Hartmut K Lichtenthaler (1999) “The Chlorophyll Fluorescence Ratio F735/F700as an Accurate Measure of the Chlorophyll Content in Plants”. Remote Sensing of Environment Volume 69, Issue 3, September 1999, Pages 296-302
https://doi.org/10.1016/S0034-4257(99)00023-1
